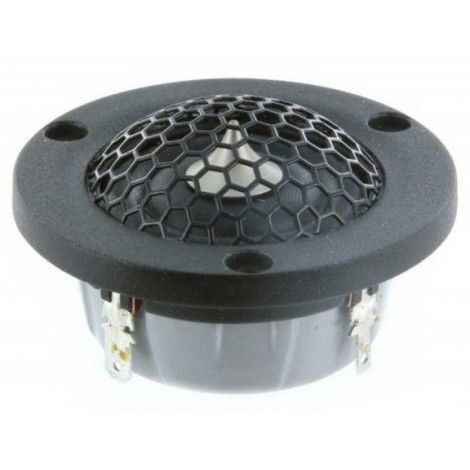

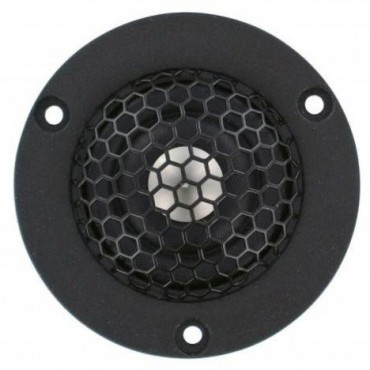

Illuminator R3004/602000 1" Ring Radiator

The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

179,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • 1" Soft Ring Dome
  • Ring Neodymium Magnet
  • Patented Symmetrical Drive (SD-2) motor
  • Patented Phase Plug Design
  • Aluminum Face Plate and Housing
  • Sound Transparent Protective Grill
  • Shallow Non Resonant Alu Rear Chamber
  • 9mm (2.44") diameter flange with 21.5mm (0.85") depth
  • Excellent choice for both home hi-fi and autosound applications



Product details

Scan-Speak Illuminator R3004/602000 1" Ring Radiator



The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.



The R3004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.



Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

SIR3004602000

Adatlap

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
87.4 dB 2.83V/1m
Resonance frequency (fs)
625 Hz
DC resistance (Re)
3 ohms
Mechanical Q (Qms)
5.73
Electrical Q at Fs (Qes)
1.43
Total Q factor (Qts)
1.14
