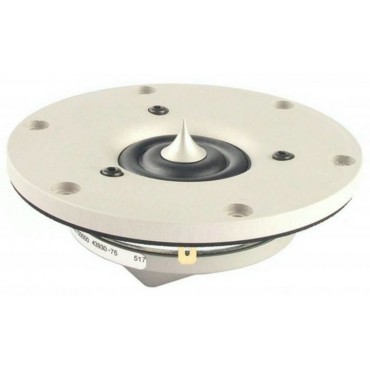

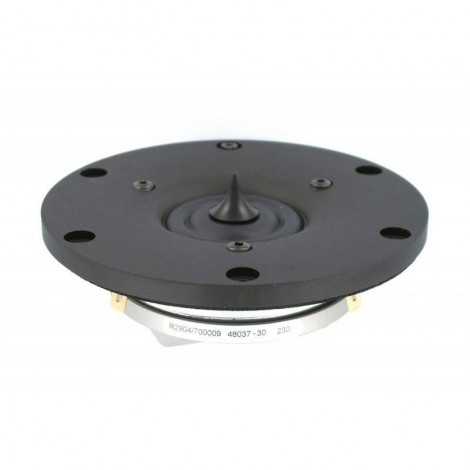

Revelator R2904/700000 1" Ring Radiator

The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radi

349,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • 1" Ring Dome Diaphragm
  • Patented Symmetrical Drive (SD-2) motor
  • Non Resonant Alu Rear Chamber
  • Patented Phase Plug Design
  • Large Ring Neo Magnet for High Output
  • Anodized Mashined Alu Face Plate



Product details

Scan-Speak Revelator R2904/700000 1" Ring Radiator



The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.



This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

SIR2904700000

Adatlap

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
94.5 dB 2.83V/1m
Resonance frequency (fs)
520 Hz
DC resistance (Re)
3 ohms
Mechanical Q (Qms)
2.90
Electrical Q at Fs (Qes)
0.38
Total Q factor (Qts)
0.33
