Classic D2905/950000 1" Textile Dome Tweeter

The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the market still used in many top High-End speakers around the world.
132,45 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • 1" Textile Dome Diaphragm
  • Low Resonant Rear Chamber
  • Ferro Fluid
  • Black Painted Alu Face Plate



Product details

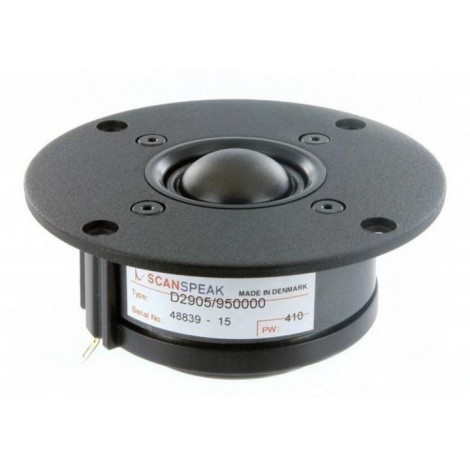

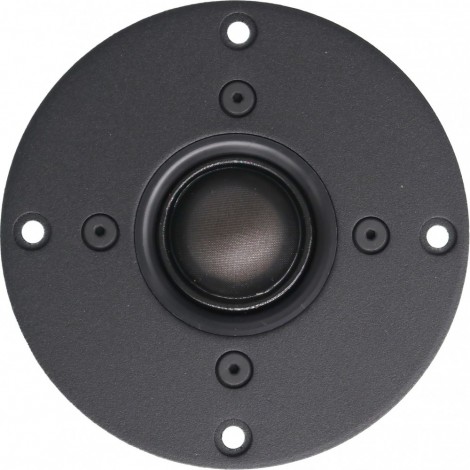

Scan-Speak Classic D2905/950000 1" Textile Dome Tweeter



The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the market still used in many top High-End speakers around the world.



Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 3.5 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.4 mm • Surface Area of Cone (Sd): 8.5 cm2

SID2905950000

Adatlap

Impedance
6 Ohm
Driver type
Tweeter
Sensitivity
90 dB 2.83V/1m
Resonance frequency (fs)
550 Hz
DC resistance (Re)
4.7 ohms
Mechanical Q (Qms)
1.04
Electrical Q at Fs (Qes)
0.60
Total Q factor (Qts)
0.38
