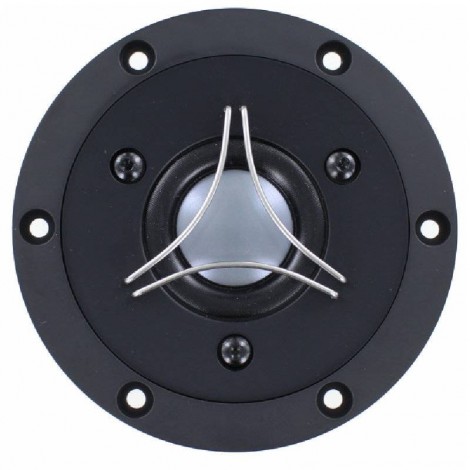

Satori TW29BN Beryllium Dome Tweeter

The new Satori Beryllium dome tweeter has arrived! Beryllium is known for its open and spatial sound, often described as holographic. The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher

409,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminum faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Product details

SB Acoustics Satori TW29BN Beryllium Dome Tweeter



The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.



Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

SITW29BNB

Adatlap

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
95 dB 2.83V/1m
Resonance frequency (fs)
725 Hz
DC resistance (Re)
3 ohms
Mechanical Q (Qms)
2.1
Electrical Q at Fs (Qes)
0.6
Total Q factor (Qts)
0.46
