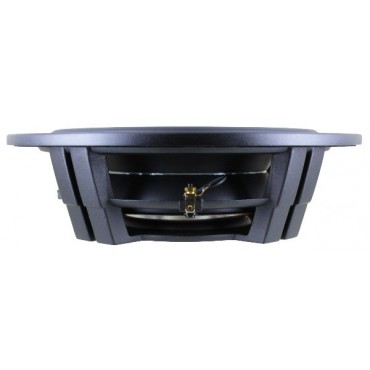

SW26DBAC76-8 10’’ Aluminum Cone Shallow Subwoofer

The SB Acoustics SW26DBAC76-8 10 inch 8 ohm aluminum shallow subwoofer. Can be used with very shallow enclosure’s

299,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Unique patented long through shallow design
  • Powerful neodymium motor system
  • Vented cast aluminum cone structure
  • Non conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • Long life silver lead wires



Product details

SB Acoustics SW26DBAC76-8 10’’Aluminum Cone Shallow Subwoofer



The SB Acoustics SW26DBAC76-8 Aluminum 10 inch 8 ohm shallow Subwoofer can give great low-end extension in a shallow enclosures due to its unique long trough design. With a depth of only 70.5 mm its good for applications where clearance can become an issue. A sealed enclosure with a volume of 40Ltr is recommend for optimal performance. This driver is not recommended for a bass-reflex/ported enclosures.

SISW26DBAC768

Adatlap

Impedance
8 Ohm
Driver type
subwoofer
Sensitivity
83 dB(2.83V/1m)
Resonance frequency (fs)
19.5 Hz
DC resistance (Re)
6.4 Ohms
Mechanical Q (Qms)
4.4
Electrical Q at Fs (Qes)
0.29
Total Q factor (Qts)
0.28
Speaker diameter
10"
Effective mechanical mass incl air load (mms)
172 g
Effective piston radiating area (Sd)
312 cm2
Force factor (BL)
21.4 Tm
Overall diameter
290 mm
