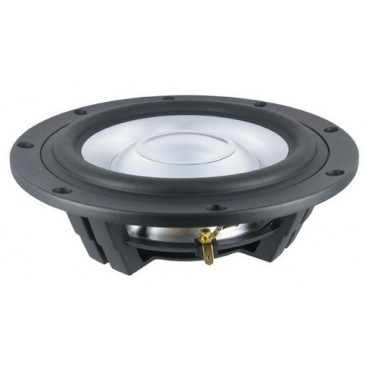

SW26DAC76-4 10" Subwoofer 4 Ohm

The SB Acoustics SW26DAC76-4 10 inch 4 ohm aluminum shallow subwoofer. Can be used with very shallow enclosure’s.

289,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Unique patented long through shallow design
  • Powerful neodymium motor system
  • Vented cast aluminum cone structure
  • Non conducting fiber glass coil former for minimum damping
  • Shorting ring in the motor system for reduced distortion
  • Long-life silver lead wires



Product details

SB Acoustics SW26DAC76-4 10" Subwoofer 4 Ohm



The SW26DAC76-4 shallow Subwoofer can give great low-end extension in shallow enclosures due to its unique long trough design. With a depth of only 70.5 mm, it's good for applications where clearance can become an issue. A sealed enclosure with a volume of 40Ltr is recommended for optimal performance. This driver is not recommended for bass-reflex/ported enclosures.

SISW26DAC764

Adatlap

Driver type
subwoofer
Sensitivity
86(2.83V/1m)
Resonance frequency (fs)
22 Hz
DC resistance (Re)
3.2 Ohms
Mechanical Q (Qms)
4.5
Electrical Q at Fs (Qes)
0.51
Total Q factor (Qts)
0.46
Speaker diameter
10"
Effective mechanical mass incl air load (mms)
134 g
Effective piston radiating area (Sd)
312 cm2
Force factor (BL)
10.8 Tm
Equivalent volume of compliance (Vas)
54 Ltr
Overall diameter
290 mm
Mounting diameter
249 mm
