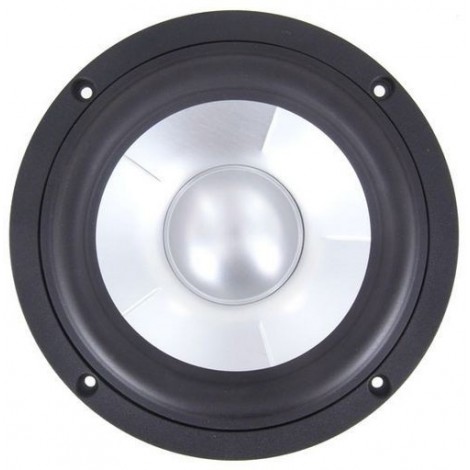

SB17NAC35-8 6'' Aluminum Cone Mid-Woofer

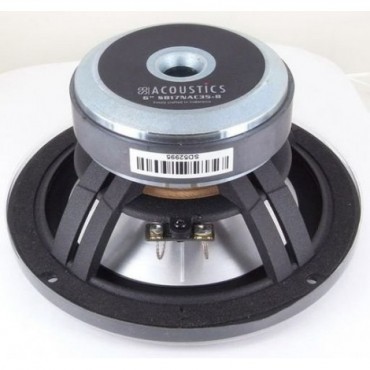

The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up.
82,45 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Vented cast aluminum chassis for optimum strength and low compression
  • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Product details

SB Acoustics SB17NAC35-8 6'' Aluminum Cone Mid-Woofer



The SB Acoustics SB17NAC35-8 features a vented cast aluminum chassis for optimum strength and low compression. Its geometrically reinforced aluminum cone allows an optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass and long life silver lead wires.

SISB17NAC358

Adatlap

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
86.5 dB 2.83V/1m
Resonance frequency (fs)
31.5 Hz
DC resistance (Re)
5.7 ohms
Mechanical Q (Qms)
6
Electrical Q at Fs (Qes)
0.45
Total Q factor (Qts)
0.42
Speaker diameter
6"
Voice coil inductance (L)
0.15 mH
Effective mechanical mass incl air load (mms)
15.2 g
Effective piston radiating area (Sd)
118 cm2
Force factor (BL)
6.2 Tm
Equivalent volume of compliance (Vas)
1.16 ft.³
