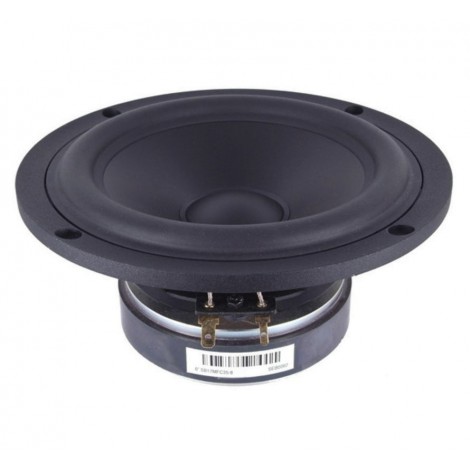

SB17MFC35-8 6" Poly Cone Woofer 8 ohm
In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on
Highlights
- Vented cast aluminum chassis for optimum strength and low compression
- Mineral filled PP-cone made in-house
- Soft low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Product details
SB Acoustics SB17MFC35-8 6" Poly Cone Woofer
In-house made mineral filled PP-cone. Low damping rubber surround for improved transient response. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive 35.5mm coil former.
SISB17MFC358
Adatlap
- Impedance
- 8 Ohm
- Driver type
- Midwoofer
- Sensitivity
- 88 dB @ 2.83V/1m
- Resonance frequency (fs)
- 33 Hz
- DC resistance (Re)
- 5.7 ohms
- Mechanical Q (Qms)
- 4.9
- Electrical Q at Fs (Qes)
- 0.40
- Total Q factor (Qts)
- 0.37
- Speaker diameter
- 6"
- Voice coil inductance (L)
- 0.15 mH
- Effective mechanical mass incl air load (mms)
- 11.8g
- Effective piston radiating area (Sd)
- 118 cm2
- Force factor (BL)
- 5.9 Tm
- Equivalent volume of compliance (Vas)
- 39 liters
- Overall diameter
- 171 mm
- Mounting diameter
- 146 mm
