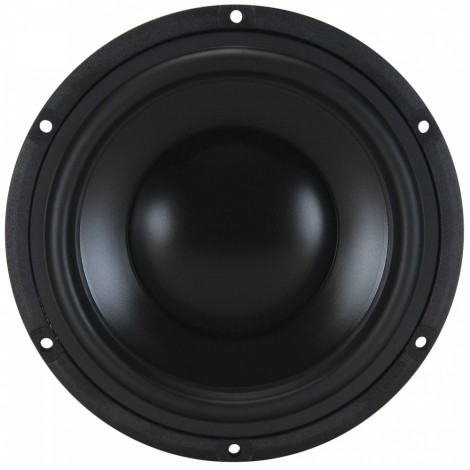

TiW 634Ft Titanium Series Ferrite 6" Woofer 4 Ohm

The 6" TiW 634Ft features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.

189,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiW 634Ft features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



Highlights

  • Double magnet ferrite system
  • Titanium coil bobbin for low energy storage
  • High 1,000W instantaneous power handling
  • Open Uniflow aluminum diecast chassis for reduced reflections
  • 3" Hexatech aluminum voice coil



Product details

Morel TiW 634Ft Titanium Series Ferrite 6" Woofer 4 Ohm



Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



Morel Titanium Advanced Series

The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.



Uniflow­™ Aluminum Diecast Chassis

All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



The 6" TiW 634Ft woofer features a double ferrite magnet system, 4-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 5,000 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

SITiW634Ft

Adatlap

Impedance
4 Ohm
Driver type
Midwoofer
Sensitivity
88 dB 2.83V/1m
Frequency range
40 - 5000 Hz
Resonance frequency (fs)
34 Hz
DC resistance (Re)
3.6 ohms
Mechanical Q (Qms)
4.5
Electrical Q at Fs (Qes)
0.43
Total Q factor (Qts)
0.39
Speaker diameter
6"
Power handling
1000 W
Voice coil inductance (L)
0.45 mH
Effective piston radiating area (Sd)
119 cm²
Force factor (BL)
5.6 Tm
Equivalent volume of compliance (Vas)
0.92 ft.³
Overall diameter
6.3"
Mounting diameter
5.51"
