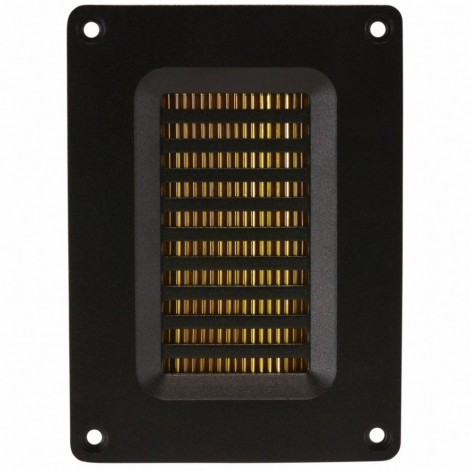

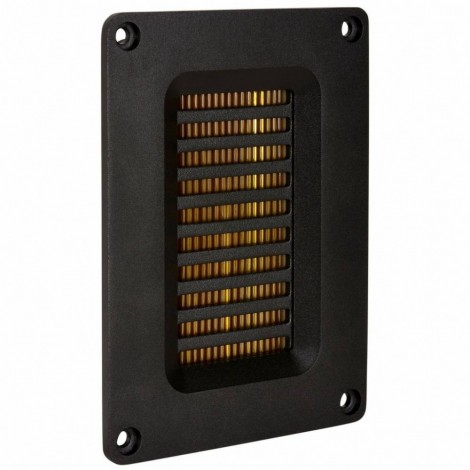

AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.

109,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.



Highlights

  • Robust metal faceplate provides secure, stable mounting
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Wide bandwidth facilitates integration with large midwoofers
  • 25 watt RMS power handling



Product details

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm



The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.



Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.



SIAMT34

Adatlap

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
93 dB 1W/1m
Frequency range
1900 - 18000 Hz
Resonance frequency (fs)
1
DC resistance (Re)
3.00 ohms
Mechanical Q (Qms)
6.26
Total Q factor (Qts)
6.15
