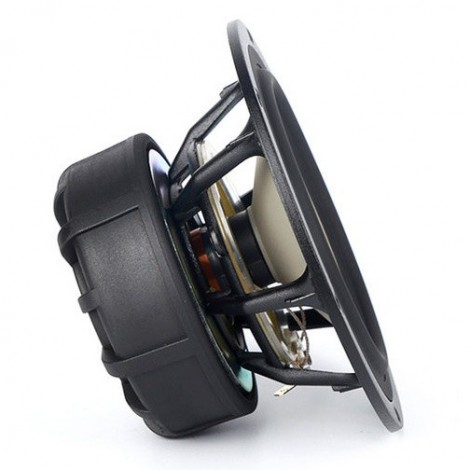

Excel W15CY/001 - E0015 5.5" Magnesium Cone Woofer

Large magnet system for improved sensitivity and transient response. Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.

€339.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Long term power handling (RMS) is 70 Watts
  • Precision cast and surface treated magnesium cone
  • Gold plated terminals mounted on a stiff glass fiber reinforced plate to reduce contact resistance and improve reliability



Product details

Seas Excel W15CY/001 - E0015 5.5" Magnesium Cone Woofer



Large magnet system for improved sensitivity and transient response. Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.



Gold plated terminals mounted on a stiff glass fiber reinforced plate to reduce contact resistance and improve reliability. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

SIW15CY001

Data sheet

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
85.5 dB 2.83V/1m
Frequency range
50 - 3000 Hz
Resonance frequency (fs)
38 Hz
DC resistance (Re)
5.5 ohms
Mechanical Q (Qms)
2.22
Electrical Q at Fs (Qes)
0.43
Total Q factor (Qts)
0.36
Speaker diameter
5"
Power handling
200 W
Voice coil inductance (L)
0.49 mH
Effective mechanical mass incl air load (mms)
9.5g
Equivalent volume of compliance (Vas)
0.49 ft.³
