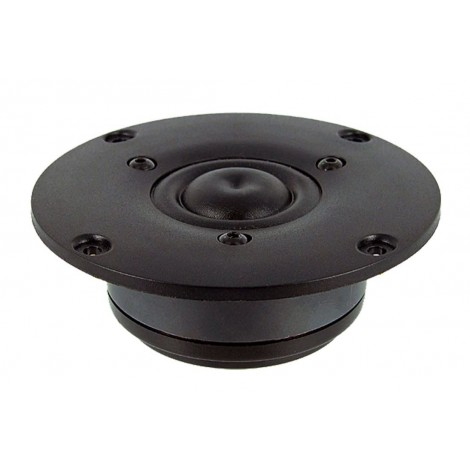

SB29RDAC-C000-4 Fabric Ring-Radiator Tweeter

A ring radiator tweeter for detailed and extended high frequency response offering a low distortion sound representation.

54,95 €
53,30 € Save 3%
Tax included

discover visa googlewallet paypal mastercard americanexpress



  • Non-resonant diaphragm design for minimum high frequency break-up
  • High efficiency 93 dB (2,83 V/1m)
  • Dual balanced compression chamber for improved dynamics
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling tot rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency


Product details

SB Acoustics SB29RDAC-C000-4  Fabric Ring-Radiator Tweeter


The SB Acoustics SB Acoustics SB29RDAC-C000-4  is a fabric Ring-Radiator tweeter features an extended high frequency response. This results in a low distortion sound representation within the range of the human hearing. The chambers within this tweeter unit are designed for improved dynamics. The driver also features a low Fs point of 600 Hz to allow for a low crossover point. A crossover point of at least 2600Hz is recommend with a second order 12dB/oct slope.


Data sheet

4 Ohm
Driver type
93dB (2.83V/1m)
Resonance frequency (fs)
900 Hz
DC resistance (Re)
3 Ohms
Mechanical Q (Qms)
Electrical Q at Fs (Qes)
Total Q factor (Qts)
