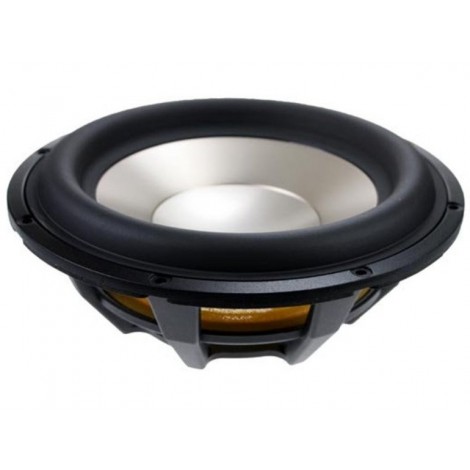

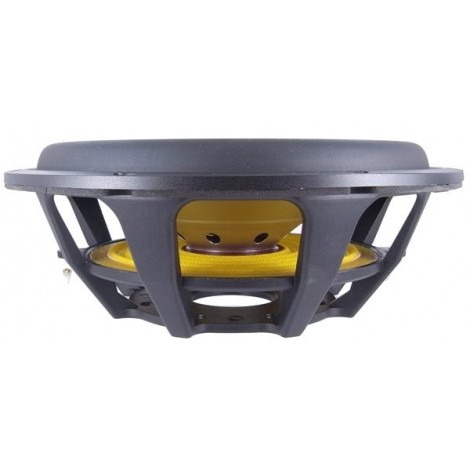

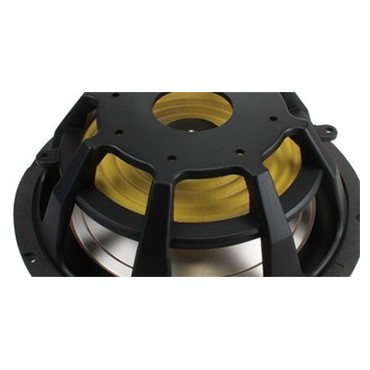

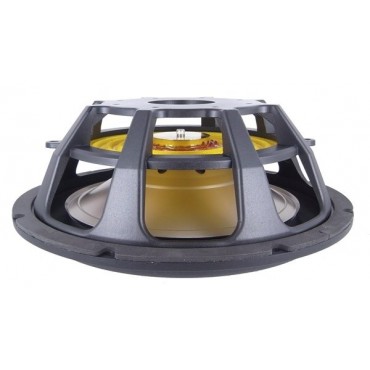

Design SL26R – D1003 10" Passive Radiator

The SL26R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or e

€182.45
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller
  • Brings improvement to the traditional bass reflex port



Product details

Seas Design SL26R – D1003 10" Passive Radiator



The SL26R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length. In such cases, a passive radiator may bring about an improvement.



The chart below will show you the mass which has to be added to the cone of the passive radiator in order to obtain the desired Helmholtz resonance frequency in a given cabinet volume. The SL26R is already matched to our D1001 L26ROY and a 40 liter cabinet but it’s also equipped with an M4 screw to which you can easily attach more added mass for other applications.



For optimum performance, the passive radiator should be mounted vertically (with horizontal cone axis) This is especially important when a significant additional mass is used.

SISL26R

Data sheet

Driver type
Passive radiator
Resonance frequency (fs)
16 Hz
Effective mechanical mass incl air load (mms)
260g
Equivalent volume of compliance (Vas)
3.28 ft.³
