Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer

Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.

€249.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Long term power handling (RMS) is 125 Watts
  • 2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

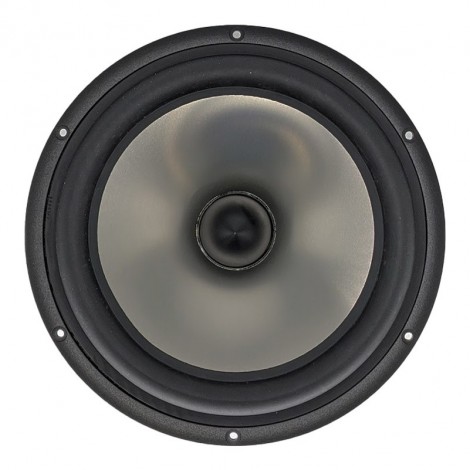

Seas Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer



Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.



2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression. Large magnet system gives good sensitivity and transient response. Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

SIL26RFXP

Data sheet

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
88 dB 2.83V/1m
Frequency range
20 - 1000 Hz
Resonance frequency (fs)
20 Hz
DC resistance (Re)
6.3 ohms
Mechanical Q (Qms)
2.15
Electrical Q at Fs (Qes)
0.39
Total Q factor (Qts)
0.33
Speaker diameter
10"
Power handling
300 W
Voice coil inductance (L)
1.83 mH
Effective mechanical mass incl air load (mms)
53g
Equivalent volume of compliance (Vas)
6.03 ft.³
Overall diameter
10.59"
Mounting diameter
9.14"
