Prestige 27TFFNC/CG - H1406-04 1.1" Dome Tweeter

Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency.

€44.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Front chape: Non-cylindrical
  • Dome material: Sonolex
  • Wide roll surround



Product Details

SEAS Prestige 27TFFNC/CG - H1406-04 1.1" Dome Tweeter

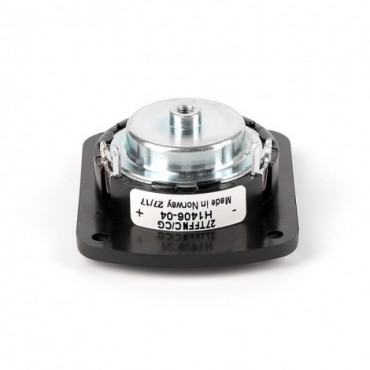

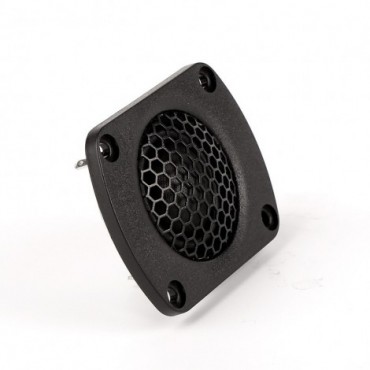

Compact design neodymium magnet tweeter for high-quality speaker designs in small cabinets or automobiles. Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency.
A wide roll surrounds together with a double chamber magnet system results in a low fundamental frequency. Very low magnetic stray fields make this unit suitable for A/V systems.
The voice coil is immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

SI27TFFNCCG

Data sheet

Driver type
Tweeter
Sensitivity
91 dB
Frequency range
2500-3000 Hz
Resonance frequency (fs)
1170 Hz
DC resistance (Re)
2.7 Ohms
