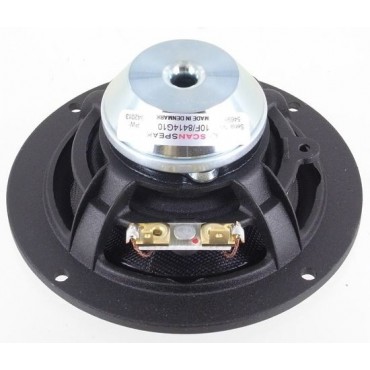

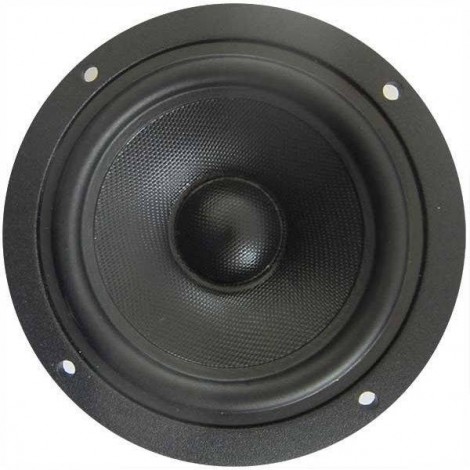

Discovery 10F/8414G10 4" Full-range Woofer

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made

€93.45
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Wide Frequency Range
  • Compact Neo magnet Motor
  • Copper Cap on Pole Piece
  • Vented Alu Chassis, SBR Rubber Surround
  • High Sensitivity 86dB/2,83V
  • Coated NRSC Fiber Glass Cone (Patent)



Product details

Scan-Speak Discovery 10F/8414G10 4" Full-range Woofer



The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



We recommend a small sealed enclosure for this, about 1 to 2 liters.  Your frequency range should about 100Hz to 18kHz.

SI10F8414G10

Data sheet

Impedance
8 Ohm
Driver type
Full-range
Sensitivity
86 dB 2.83V/1m
Resonance frequency (fs)
100 Hz
DC resistance (Re)
6.3 ohms
Mechanical Q (Qms)
2.44
Electrical Q at Fs (Qes)
0.65
Total Q factor (Qts)
0.51
Speaker diameter
4"
Power handling
20 W
Voice coil inductance (L)
0.11 mH
Effective mechanical mass incl air load (mms)
2.93g
Effective piston radiating area (Sd)
36.3 cm2
Force factor (BL)
4.27 Tm
Equivalent volume of compliance (Vas)
0.05 ft.³
