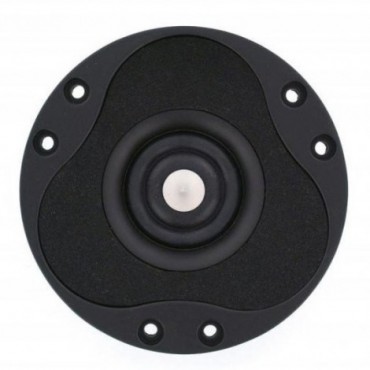

Illuminator R3004/662000 1" Ring Radiator

The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in al

€269.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • 1" Ring Dome Diaphragm
  • Patented Symmetrical Drive (SD-2) motor
  • Diffraction Damping Rubber Front
  • Patented Phase Plug Design
  • AirCirc Motor Design with 6 Neo magnets
  • Die Cast Rubber Painted Alu Face Plate



Product details

Scan-Speak Illuminator R3004/662000 1" Ring Radiator



The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.



The R3004 builds on the experience of the one-inch R29 ring radiator, resulting in low resonance frequency, superb vocal rendition and excellent imaging at all listening locations. Scan-speak’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors.



Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

SIR3004662000

Data sheet

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
90.4 dB 2.83V/1m
Resonance frequency (fs)
520 Hz
DC resistance (Re)
3 ohms
Mechanical Q (Qms)
3.27
Electrical Q at Fs (Qes)
0.56
Total Q factor (Qts)
0.48
