Discovery R2604/833000 1" Ring Radiator

The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz. The additional volume from the second magnet also increases the size of the chamber, lowering

€62.45
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • Dual Ring Radiator Diaphragm (Patented)
  • Wave-guide centre plug (Patented)
  • Extended frequency to above 40kHz
  • High Sensitivity - 92dB
  • Low Resonance Frequency - 440Hz
  • Low Distortion
  • Double Magnet
  • Copper Clad Alu-wire



Product details

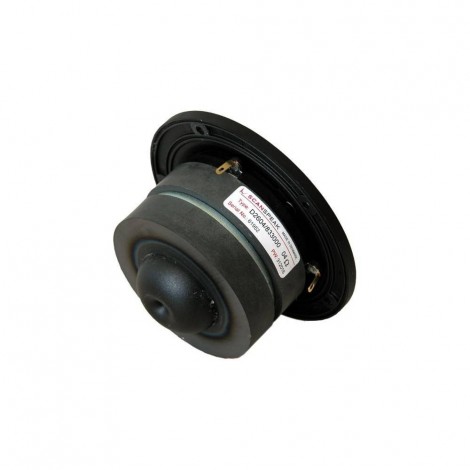

Scan-Speak Discovery R2604/833000 1” Ring Radiator



The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz.  The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency.   This tweeter is an excellent choice for any high-end home or automotive system.



Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.44 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.4 cm2

SIR2604833000

Data sheet

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
92 dB 2.83V/1m
Resonance frequency (fs)
440 Hz
DC resistance (Re)
2.9 ohms
Mechanical Q (Qms)
2.18
Electrical Q at Fs (Qes)
0.46
Total Q factor (Qts)
0.38
