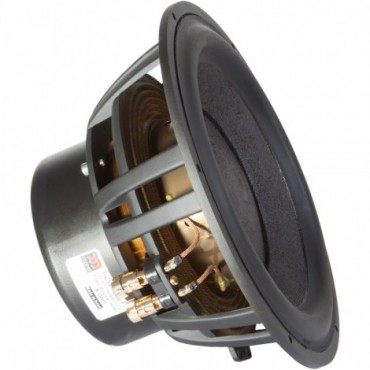

TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm
To create their Titanium Ultimate high fidelity 10" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former.
Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 10" subwoofer. Get a free knock-down subwoofer cabinet for a limited time with the purchase of a Morel Titanium Ultimate 10" subwoofer.
- Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
- 8 ohm impedance for a high damping factor and more amplifier control
- 5.1" Hexatech voice coil for 600 watts RMS power handling
- Accucenter self-centering, one-piece paper cone assembly
Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm
To create their Titanium Ultimate high fidelity 10" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.
Speed-robbing energy storage is reduced to an insanely low 0.52 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.
For a limited time, a 1.25 cubic foot knock-down subwoofer cabinet is included for free. This cabinet creates a critically damped system when used with the Morel Titanium Ultimate 10" subwoofer and 1 lb. of Acousta-Stuf, for a Qtc of 0.61 and an f6 of 38 Hz, for refined sub-bass playback that excels with classical, jazz, and high-fidelity recordings.
- 8 Ohm
- Driver type
- 86 dB 2.83V/1m
- Frequency range
- 24 - 2000 Hz
- Resonance frequency (fs)
- 24 Hz
- DC resistance (Re)
- 6.3 ohms
- Mechanical Q (Qms)
- Electrical Q at Fs (Qes)
- Total Q factor (Qts)
- Speaker diameter
- Power handling
- Voice coil inductance (L)
- 0.52 mH
- Effective mechanical mass incl air load (mms)
- 106 g
- Effective piston radiating area (Sd)
- 346 cm²
- Force factor (BL)
- 15.86 Tm
- Equivalent volume of compliance (Vas)
- 3.74 ft.³
- Overall diameter
- Mounting diameter
