SB26STWGC-4 Tweeter

Solid aluminium waveguide, Controlled directivity, Adapter ring for bolt-less mounting to driver, Copper cap for reduced voice coil inductance and minimum phase shift, Non-reflective rear chamber with optimized damping for improved dynamics.

79,95 €
77,55 € Save 3%
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Overené VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Solid aluminium waveguide
  • Controlled directivity
  • Adapter ring for bolt-less mounting to driver
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Non-reflective rear chamber with optimized damping for improved dynamics



Product details

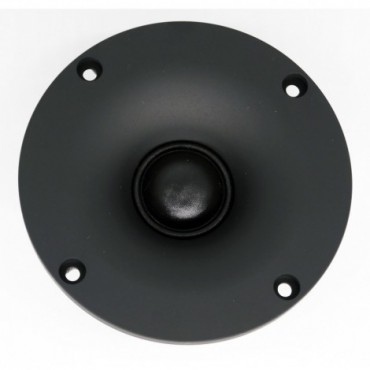

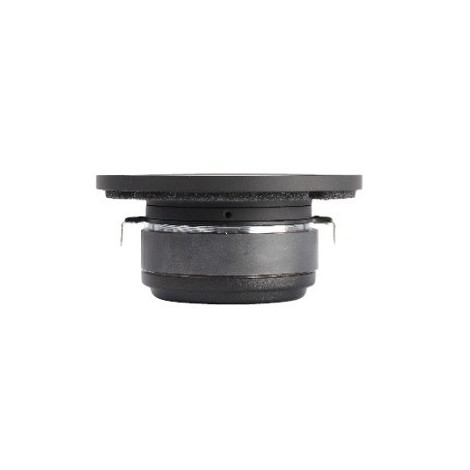

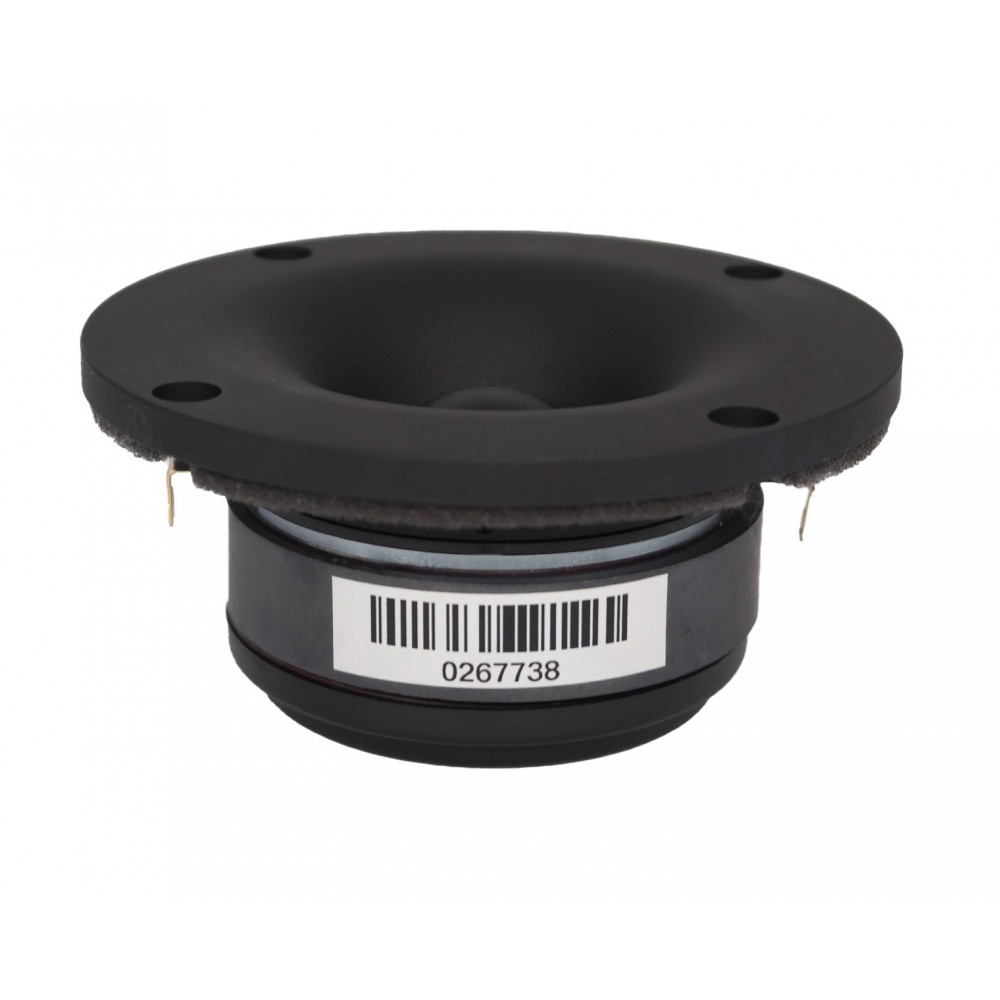

SB acoustics SB26STWGC-4 Tweeter



Flow optimized vented pole piece for optimum coupling to rear chamber, Fine weave soft fabric dome for smooth frequency response, Saturation controlled motor system for low distortion, CCAW voice coil for low moving mass, Long life silver lead wires, Low resonance frequency.

SISB26STWGC4

Data sheet

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
(2.83 V / 1 m) 93 dB
Resonance frequency (fs)
780 Hz
DC resistance (Re)
3.2 Ohms
Mechanical Q (Qms)
2.8
Electrical Q at Fs (Qes)
2.1
Total Q factor (Qts)
1.2
