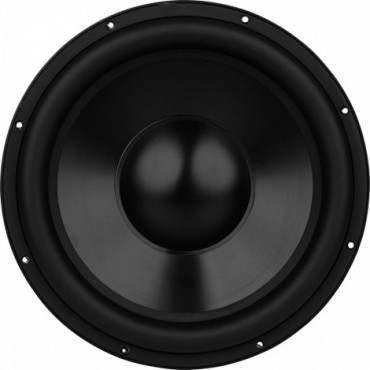

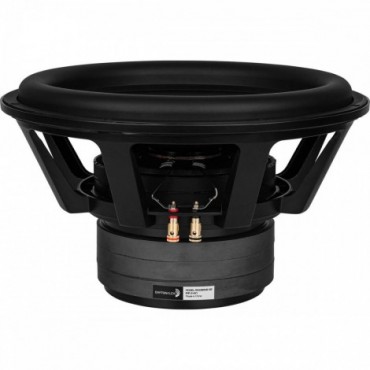

RSS390HE-22 15" Reference Series High Excursion Subwoofer 2+2 ohm

Data sheet

Driver type

Woofer

Sensitivity

89.3dB 2.83V/1m

Frequency range

20 - 600Hz

Resonance frequency (fs)

29Hz

DC resistance (Re)

4.3Ω

Mechanical Q (Qms)

4.59

Electrical Q at Fs (Qes)

0.58

Total Q factor (Qts)

0.51

Speaker diameter

15"

Power handling

1600 W

Voice coil inductance (L)

2.2mH

Effective mechanical mass incl air load (mms)

384g

Effective piston radiating area (Sd)

804cm²

Force factor (BL)

22.9T·m

Equivalent volume of compliance (Vas)

2.52ft³

Overall diameter

15.28"

Mounting diameter

14.1"
