ES140Ti-8 5-1/2" Esoteric Series Woofer 8 Ohm

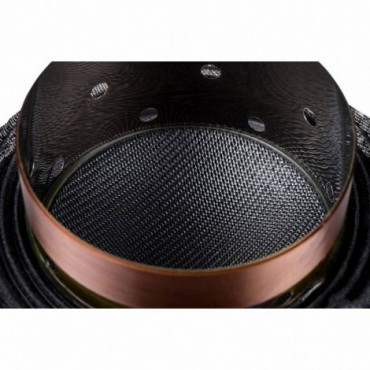

The Dayton Audio ES140Ti-8 is a high-technology 5-1/2" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high powe
149,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress
SIES140Ti8

Adatlap

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
84.4 dB 2.83V/1m
Frequency range
45 - 4100 Hz
Resonance frequency (fs)
48.5 Hz
DC resistance (Re)
6.5 ohms
Mechanical Q (Qms)
6.65
Electrical Q at Fs (Qes)
0.53
Total Q factor (Qts)
0.49
Speaker diameter
5"
Power handling
200 W
Voice coil inductance (L)
1 mH
Effective mechanical mass incl air load (mms)
20.9g
Effective piston radiating area (Sd)
98.5 cm²
Force factor (BL)
8.83 Tm
Equivalent volume of compliance (Vas)
0.24 ft.³
Overall diameter
5.94"
Mounting diameter
4.94"
