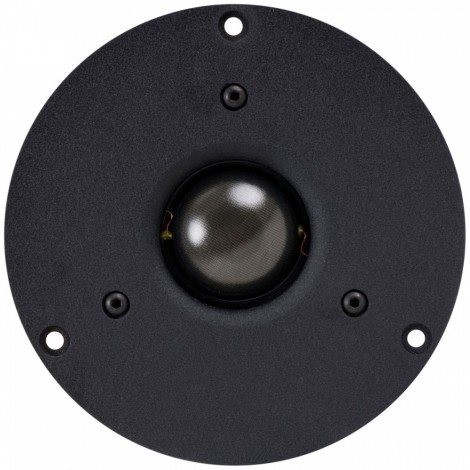

Classic Advanced CAT 298 1" Dome Tweeter

An updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 1-1/8" soft dome, ferrofluid cooling, and aluminum voice coil, but without the double magnet system and damped rear chamber.

€74.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

An updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 1-1/8" soft dome, ferrofluid cooling, and aluminum voice coil.



Highlights

  • 104 mm aluminum faceplate
  • Large diameter voice coil
  • Replaceable dome/coil assembly
  • Ferrofluid cooled
  • High power handling
  • Sturdy gold plated input tags



Product details

Morel Classic Advanced CAT 298 1" Dome Tweeter



An updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 1-1/8" soft dome, ferrofluid cooling, and aluminum voice coil, but without the double magnet system and damped rear chamber. Very smooth on-and off-axis frequency response.

SICAT298

Data sheet

Impedance
8 Ohm
Driver type
Tweeter
Sensitivity
89 dB 1W/1m
Frequency range
1800 - 20000 Hz
Resonance frequency (fs)
900 Hz
DC resistance (Re)
5.2 ohms
