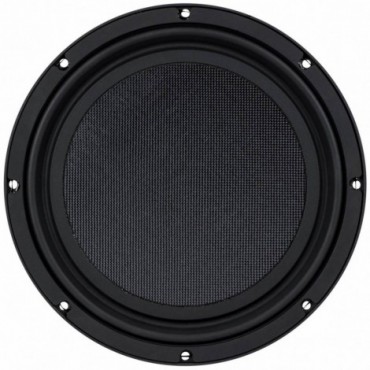

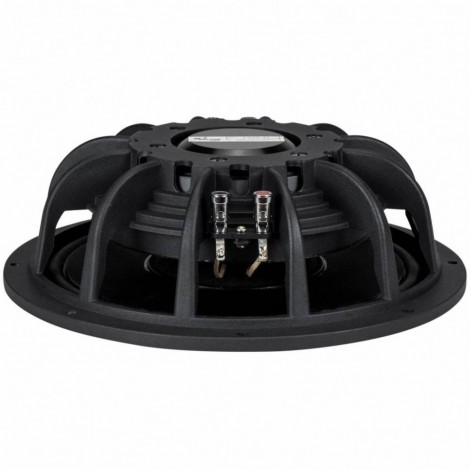

LS12-44 12" Low Profile Subwoofer Dual 4 Ohm

At a depth of less than 4", Dayton Audio's LS12-44 12" low profile subwoofer fits into shallow spaces that ordinary subs wouldn't dream of attempting! Dual 2" 4 ohm coils provide flexible wiring, while the flat cone and innovative suspension support 10 mm

€188.95
€183.28 Save 3%
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

SILS1244

Data sheet

Driver type
subwoofer
Sensitivity
88 dB @ 2.83V/1m
Frequency range
28 - 300 Hz
Resonance frequency (fs)
33.7 Hz
DC resistance (Re)
7.5 ohms
Mechanical Q (Qms)
4.95
Electrical Q at Fs (Qes)
0.56
Total Q factor (Qts)
0.51
Speaker diameter
12"
Power handling
500 W
Voice coil inductance (L)
5.34 mH @ 1 kHz
Effective mechanical mass incl air load (mms)
166g
Effective piston radiating area (Sd)
547.3 cm²
Force factor (BL)
21.7 Tm
Equivalent volume of compliance (Vas)
56.6 liters
Overall diameter
315 mm
Mounting diameter
282 mm
